EP-X Series (1.6 - 2.5t)

Enhance your warehouse operations with Hyundai’s latest 16EP-X, 20EP-X, and 25EP-X pallet trucks, designed for light-duty tasks with load capacities from 1.6 to 2.5 tonnes. Featuring a variety of fork lengths, chassis widths, and LCD display, the EP-X series delivers reliable performance, adaptability, and precise control.

1600 / 2000 / 2500 kg

600 mm

120 mm

1440 / 1490 / 1750 mm

Technical details

Product Overview

Designed for busy warehouse environments, these compact yet durable pallet trucks prioritise efficiency, safety, and operator comfort. With a choice of fork lengths and either single or double load wheels, the EP-X series easily adapts to a variety of material handling tasks. Their ergonomic design allows for smooth manoeuvrability in tight spaces. Whether you're moving pallets in retail distribution, light manufacturing, or logistics, the EP-X range delivers an ideal blend of performance and precision.

Reasons to choose the 16-20-25EP-X Pallet Trucks

Easy Maintenance for Maximum Uptime

The Hyundai EP-X range is designed with serviceability in mind, reducing downtime and keeping your operation running smoothly. With simplified systems and high-quality components, these pallet trucks deliver long-term reliability and easy maintenance.

  • The sealed hydraulic lifting circuit eliminates hoses and pipes, reducing the risk of leaks and improving overall reliability.
  • Integrated Curtis controllers with CAN-bus technology make fault detection and troubleshooting faster and more efficient.
  • Equipped with trusted parts from leading brands like Kordel, Intorque, and Wicke to ensure long-lasting performance.
  • Each Li-ion battery is fully diagnosable via CAN connection, providing in-depth data on cell health, cycles, temperature, faults, and more.

Built-In Safety for Confident Operation

The Hyundai EP-X range is designed with advanced safety features that protect both the operator and the equipment. From intelligent battery monitoring to smart speed controls, every detail supports safe and smooth handling.

  • Each Li-ion battery includes an on-board BMS to monitor performance and ensure safe charging and operation throughout its life cycle.
  • An air spring supports the tiller bar, allowing for a smooth, impact-free return to the upright position.

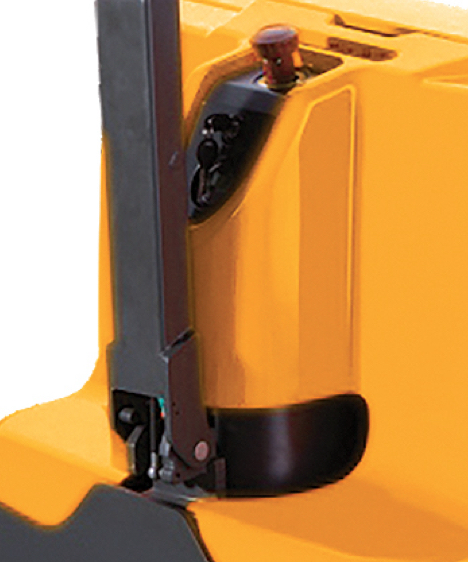

  • The Rema tiller offers exceptional ergonomics and a highly safe and reliable control system

Built for Performance and Durability

Hyundai’s EP-X pallet trucks are engineered to maximise productivity while standing up to the demands of daily warehouse use. With robust construction and thoughtful design, they deliver consistent performance in even the toughest environments.

  • C-shaped forks provide added strength and rigidity, with smooth entry and exit for faster pallet handling.
  • A solid steel apron shields both the operator’s feet and the truck’s internal parts from impact.
  • Optional quick charging, longer lasting lithium-ion batteries allow extended hours of continued operation on a single charge.

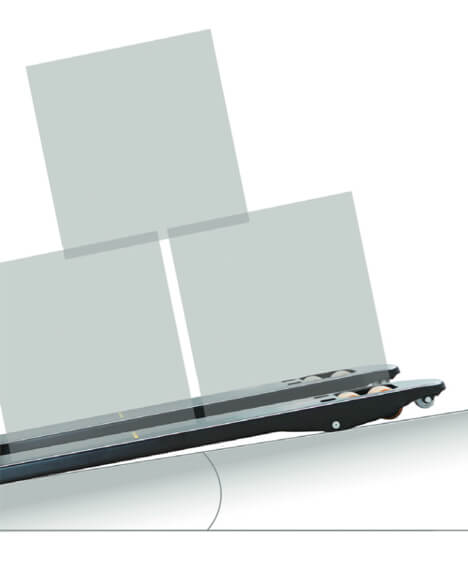

  • Excellent handling on inclines—up to 15% max gradability when unloaded and 8% when fully loaded—ensures smooth operation in all conditions.

Efficient Power with Flexible Battery Options

Hyundai’s EP-X pallet trucks offer smart, flexible battery solutions to match your workload and maximise uptime. With fast charging, easy replacement, and multiple capacity options, you stay powered for longer with minimal disruption.

  • EP-X models can be fitted with Li-ion or lead-acid batteries—or supplied without one for custom integration.
  • Recharge anytime with rapid charging options that reduce downtime and support multi-shift use.
  • Choose from 160Ah to 200Ah battery options to suit different application demands and shift durations.

FAQs about the Hyundai Material Handling 12-15-20EP-XB Pallet Trucks


What batteries do the 16-20-25EP-X pallet trucks run off?

The EP-X range runs off pallet trucks run off a 24V lead-acid battery with an optional 24V Li-ion also available.



What is the load centre of the 16-20-25EP-X pallet trucks?

All machines have a 600mm load centre


What is the load capacity of the 16-20-25EP-X pallet trucks?

The pallet trucks have a lift capacity of 1.6 tonnes, 2 tonnes and 2.6 tonnes


What is the drive motor rating of the 16-20-25EP-X pallet trucks?

The 16 and 20EP-X pallet trucks have a 1.3kW drive, the 25EP-X pallet truck has a 1.7kW drive.
