1200 / 1500 / 2000 kg
600 mm
115 mm
1337 / 1330 / 1336 mm
Technical details
Product Overview
These compact yet robust pallet trucks are built for efficiency, safety, and operator comfort in busy warehouse environments. With two chassis widths, multiple fork length options, and the choice of single or double load wheels, the EP-XB series adapts easily to a wide range of handling tasks.
Advanced features like RFID keyless entry and PIN code access enhance operational security, while the ergonomic design ensures smooth manoeuvrability in confined spaces. Whether you're transporting pallets in retail distribution, light manufacturing, or logistics, the EP-XB range offers the perfect balance of performance and precision.
Reasons to choose the 12-15-20EP-XB Pallet Trucks

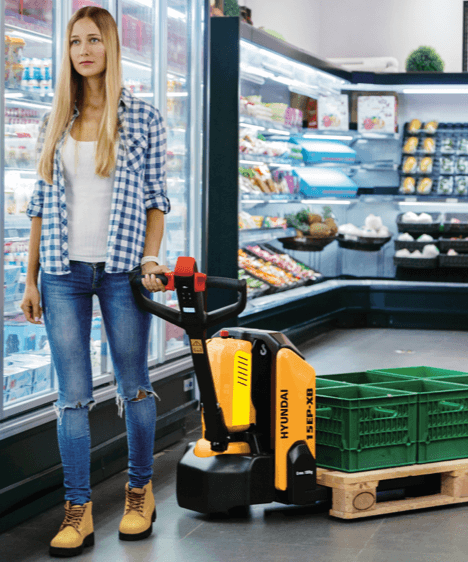

Built for Performance and Durability
Hyundai’s EP-XB pallet trucks are engineered to maximise productivity while standing up to the demands of daily warehouse use. With robust construction and thoughtful design, they deliver consistent performance in even the toughest environments.
- Stamped steel elements around the truck frame protect key components and boost durability on the 12EP-XB and 15EP-XB models.
- C-shaped forks provide added strength and rigidity, with smooth entry and exit for faster pallet handling.
- A solid steel apron shields both the operator’s feet and the truck’s internal parts from impact.
- Excellent handling on inclines—up to 16% max gradability when unloaded and 4–7% when fully loaded—ensures smooth operation in all conditions.
Efficient Power with Flexible Battery Options
Hyundai’s EP-XB and EP-X pallet trucks offer smart, flexible battery solutions to match your workload and maximise uptime. With fast charging, easy replacement, and multiple capacity options, you stay powered for longer with minimal disruption.

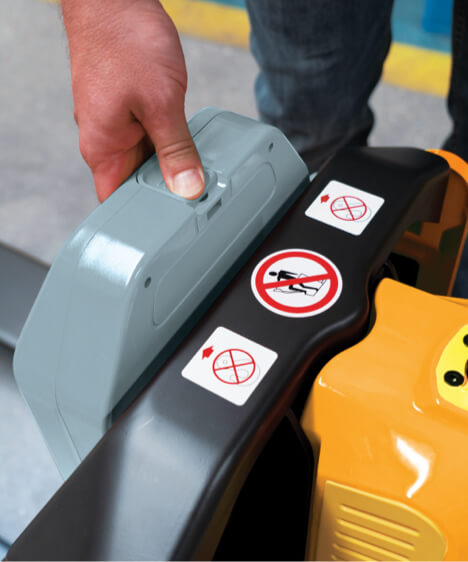

- The EP-XB models come standard with lightweight Li-ion batteries (max. 8kg) for quick and hassle-free operation.
- EP-X models can be fitted with Li-ion or lead-acid batteries—or supplied without one for custom integration.
- Recharge anytime with rapid charging options that reduce downtime and support multi-shift use.
- Choose from 20Ah to 36Ah battery options to suit different application demands and shift durations.

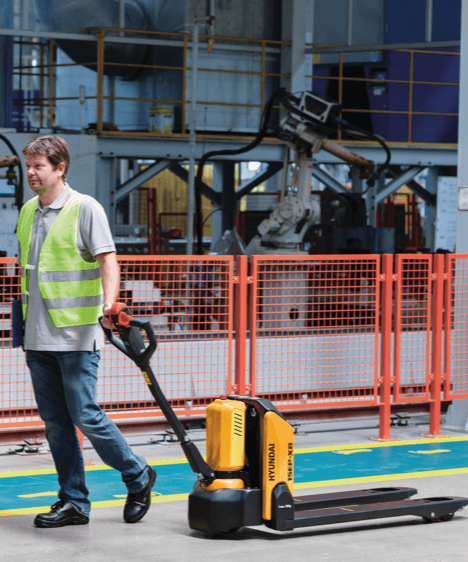

Built-In Safety for Confident Operation
The Hyundai EP-XB range is designed with advanced safety features that protect both the operator and the equipment. From intelligent battery monitoring to smart speed controls, every detail supports safe and smooth handling.
- Each Li-ion battery includes an on-board BMS to monitor performance and ensure safe charging and operation throughout its life cycle.
- An air spring supports the tiller bar, allowing for a smooth, impact-free return to the upright position.
- Enhances safety by reducing speed during cornering—standard on the 20EP-XB, optional on the 12EP-XB and 15EP-XB.
- Speed reduction values can be tailored to match your site’s specific safety and performance requirements.

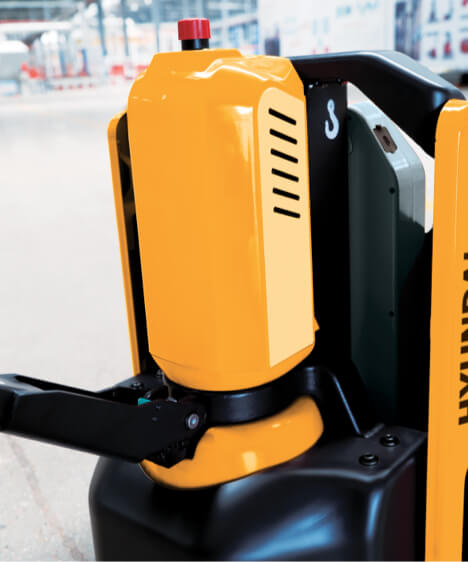

Easy Maintenance for Maximum Uptime
The Hyundai EP-XB range is designed with serviceability in mind, reducing downtime and keeping your operation running smoothly. With simplified systems and high-quality components, these pallet trucks deliver long-term reliability and easy maintenance.
- The sealed hydraulic lifting circuit eliminates hoses and pipes, reducing the risk of leaks and improving overall reliability.
- Integrated Curtis controllers with CAN-bus technology make fault detection and troubleshooting faster and more efficient.
- Equipped with trusted parts from leading brands like Kordel, Intorque, and Wicke to ensure long-lasting performance.
- Each Li-ion battery is fully diagnosable via CAN connection, providing in-depth data on cell health, cycles, temperature, faults, and more.
FAQs about the Hyundai Material Handling 12-15-20EP-XB Pallet Trucks
What batteries do the 12-15-20EP-XB pallet trucks run off?
The 12 and 15EP-XB pallet trucks run off 24V / 20Ah Li-ion batteries, the 20EP-XB pallet truck runs off a 48V / 20Ah Li-ion battery.
What is the load centre of the 12-15-20EP-XB pallet trucks?
All machines have a 600mm load centre
What is the load capacity of the 12-15-20EP-XB pallet trucks?
The pallet trucks run off 1.2 tonne, 1.5 tonne and 2.0 tonne
What is the drive motor rating of the 12-15-20EP-XB pallet trucks?
The 12 and 15EP-XB pallet trucks have a 1.3kW drive, the 20EP-XB pallet truck has a 1.3kW drive.
