1600 / 2000 kg
600 mm
5430 mm
24 V
Technical details

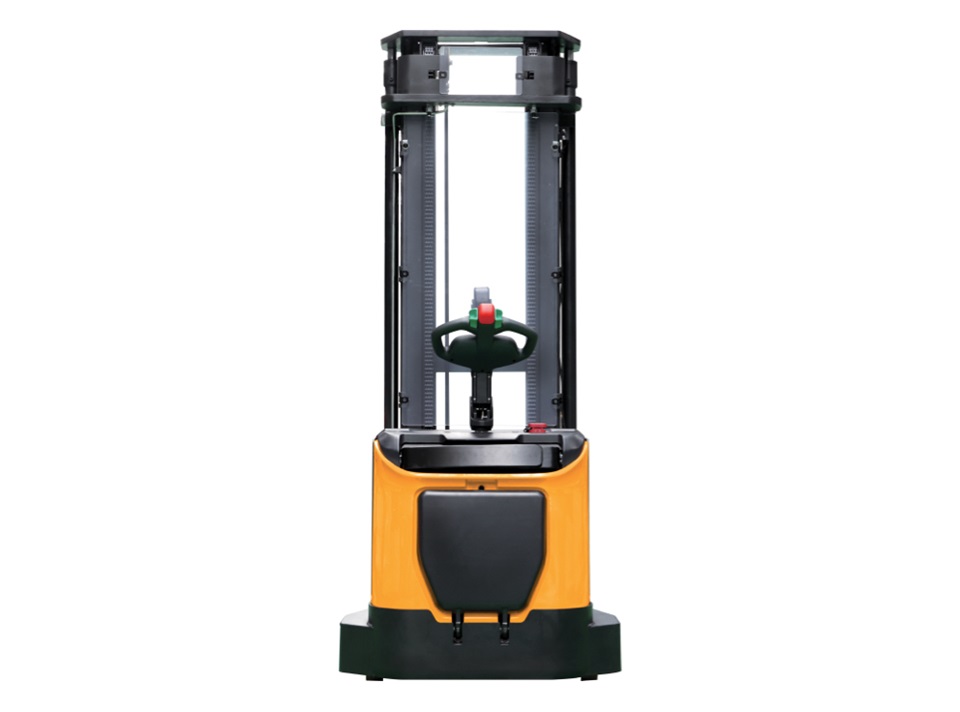

Reasons to choose the 16ESR-X & 20ESR-X Ride-On Pallet Stackers
Product Overview
Equipped with advanced driving wheel floating technology and fixed side balance wheels, the Hyundai ESR-X range offers enhanced grip, stability, and shock absorption. The adjustable pressure structure adapts to different surfaces and loads, while the floating platform ensures smoother, more comfortable operation. Ideal for demanding warehouse environments that require precision and durability.
Productivity That Keeps You Moving
The Hyundai 16ESR-X and 20ESR-X ride-on pallet stackers are engineered for high-efficiency performance in busy warehouse environments. With smooth controls, smart design, and optional productivity-enhancing features, they’re ideal for fast-paced, multi-shift operations.
- Floating, foldable platform enhances ride comfort and absorbs shocks, allowing for smooth operation over uneven surfaces.
- Optional French HPI system enables precise lifting and lowering—perfect for delicate or high-value goods.
- Fully proportional hydraulic system ensures controlled acceleration and deceleration of forks during lifting
- Optional side battery extraction with a special trailer simplifies swaps for seamless multi-shift productivity.
Advanced Lead Acid or Li-ion Power for Maximum Efficiency
The Hyundai 16ESR-X and 20ESR-X ride-on pallet stackers are powered by intelligent Lead Acid or Li-ion battery systems, designed for high performance, multi-shift use, and minimal maintenance. With advanced safety and monitoring features, these batteries offer a smarter, more sustainable energy solution.
- Smart Battery Management System (BMS) on Li-ion batteries monitors all key parameters and communicates with the stacker via CAN for real-time diagnostics and safety control.
- Li-ion batteries meet international safety standards for both sea and air transport, as well as operational compliance.
- Ideal for demanding operations, the batteries are quick to charge, environmentally friendly, and require no regular upkeep.
- With extended service life and reduced maintenance, Li-ion batteries deliver exceptional value and high operational uptime.
Designed for Safety, Built for Confidence
The Hyundai 16ESR-X and 20ESR-X ride-on pallet stackers are packed with smart safety features that prioritise operator protection, secure access, and stable handling. Whether in tight warehouse spaces or busy loading zones, these stackers deliver safe and controlled performance.
- Choose between manual PIN entry or RFID card swipe for secure, personalised operator access.
- Stable 4-wheel design enhances balance and control during operation, even under heavy loads or on uneven surfaces.

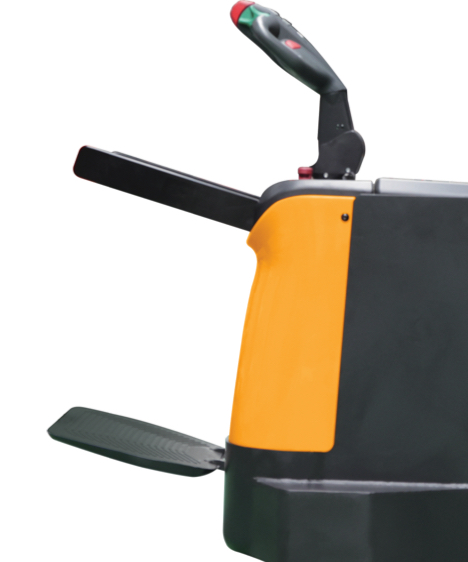

- Ergonomic long tiller is compact, comfortable, and designed to keep the operator at a safe working distance.
- Integrated control panel features a key switch, emergency stop, battery indicator, and USB port—all in one easy-access location.
Built for Durability, Designed for Easy Maintenance
The Hyundai 16ESR-X and 20ESR-X ride-on pallet stackers are equipped with premium, low-maintenance components that ensure long-term reliability and reduced service downtime—ideal for demanding warehouse operations.
- Maintenance-free German AC powertrain delivers high performance with minimal upkeep, even in multi-shift environments.
- Premium brand components includes trusted names like Rema, ensuring durability and consistent quality across all key systems.
- German-made Rema handle with non-contact rocker switch extends operational life and ensures ergonomic control.
- An 8mm thick steel apron shields internal components from impact, reducing wear and extending service life.
FAQs about the Hyundai Material Handling 16 & 20ESR-X Ride-On Pallet Stackers
What batteries do the 16 & 20ESR-X ride-on pallet stackers run off?
The 16ESR-X runs off a 270Ah 3VBS lead acid battery and the20ESR-X runs off a 350Ah DIN 3PzS lead acid battery. Li-ion batteries are also available.
What is the load centre of the 16 & 20ESR-X ride-on pallet stackers?
All machines have a 600mm load centre.
What is the load capacity of the 16 & 20ESR-X ride-on pallet stackers?
The ride-on pallet stackers have a lift capacity of 1.6 to 2.0 tonnes.
What is the maximum lift height of the 16 & 20ESR-X ride-on pallet stackers?
The maximum lift height is 5430mm.
