1200 / 1600 / 2000 kg
600 mm
4530 mm
24 V
Technical details
Product Overview
Designed for maximum control and safety, these robust machines feature a long tiller for improved operator distance, a fully proportional lift system for precision stacking, and industry-leading components for long-lasting reliability. Whether you’re handling light or heavy-duty warehouse tasks, the ES-X series offers the perfect blend of power, efficiency, and durability.
Reasons to choose the 12ES-X, 16ES-X & 20ES-X Pallet Stackers
Productivity You Can Rely On
The Hyundai 12ES-X, 16ES-X, and 20ES-X pallet stackers are built for high-efficiency performance in demanding warehouse environments. From smooth stacking to reliable operation on less-than-perfect floors, these models are designed to keep your productivity high and downtime low.
- Electronically controlled lift system ensures accurate load positioning at any height for faster, safer stacking.
- Powerful German AC Powertrain delivers strong, maintenance-free performance—ideal for high-mast operations.
- Optimised for harsh conditions, the vertical AC motor design protects critical components and brakes from floor debris.
- IP54-rated controller safeguards electronics against dust and water splashes for uninterrupted operation in tough environments.
Power Options That Match Your Workload
The Hyundai 12ES-X, 16ES-X, and 20ES-X pallet stackers offer tailored battery solutions to suit every warehouse operation—from light-duty tasks to intensive multi-shift environments. Choose from reliable lead-acid or advanced Li-ion options to keep productivity at its peak.

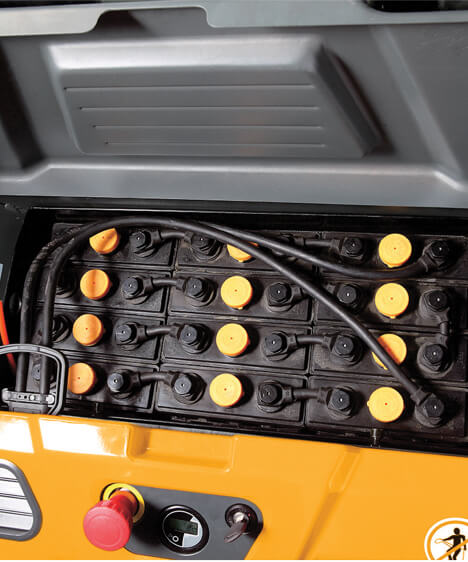

- Each model is paired with a battery sized for its workload—180Ah for the 12ES-X, 270Ah for the 16ES-X, and a powerful 350Ah for the 20ES-X.
- Go maintenance-free with Li-ion batteries—up to 200Ah on the 20ES-X—for rapid charging and high efficiency.
- The 20ES-X’s high-capacity battery supports long operating hours with minimal downtime.
- The 16ES-X offers both 150Ah and optional 200Ah Li-ion configurations to suit changing operational demands.
Safety First in Every Operation
Hyundai’s 12ES-X, 16ES-X, and 20ES-X pallet stackers are designed with safety at their core—combining smart ergonomics, robust components, and precise handling to ensure reliable protection for operators and goods alike.

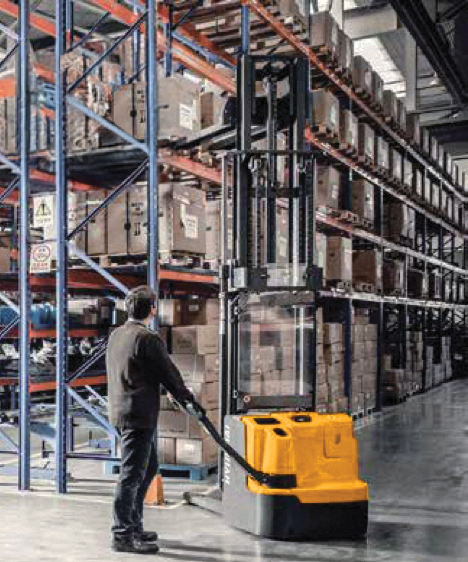

- Ergonomic long tiller provides better leverage with less effort and keeps the operator at a safe working distance for quicker, more comfortable handling.

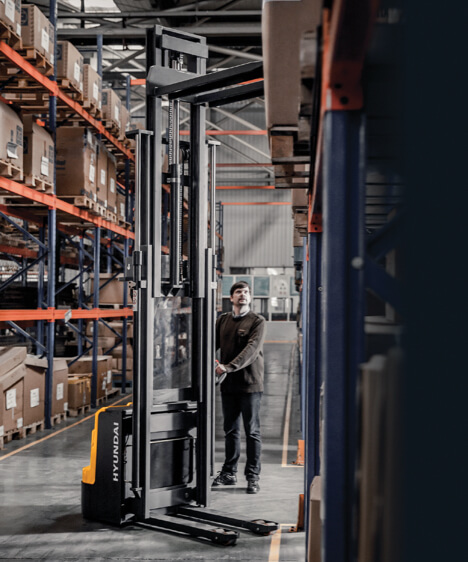

- Clear visibility of forks ensures accurate positioning and safer stacking in tight warehouse environments.
- Proportional electronic lift and lower functions enables smooth, controlled movement of loads—minimising shock and reducing the chance of accidents.
- Stable 4-Wheel chassis delivers excellent balance and stability, even with heavy loads or uneven surfaces.
Built to Last, Easy to Maintain
The Hyundai 12ES-X, 16ES-X, and 20ES-X pallet stackers are engineered with durability and serviceability in mind. From premium components to maintenance-friendly design features, these stackers keep downtime low and performance high—even in demanding environments.
- Top quality components featuring Schabmüller AC motors, Kordel gearboxes, HPI hydraulic power packs, Curtis controllers, and Wicke drive wheels for long-term reliability.

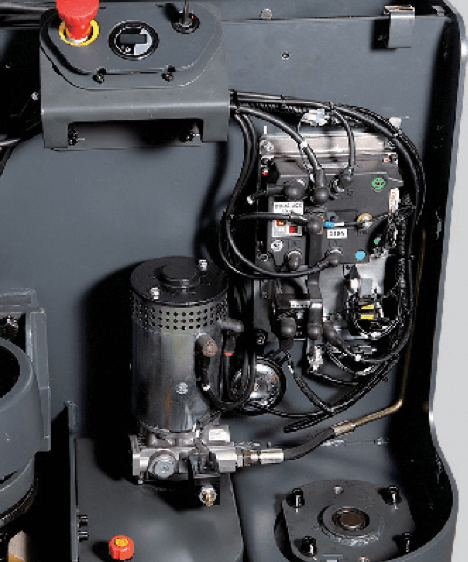

- Main cover removal with just two screws makes all key components easy to reach, speeding up maintenance.
- Drive and castor wheels can be replaced without the need for lifting equipment.
- S8mm steel apron and durable metal battery cover shield internal components from impact and reduce wear over time.
FAQs about the Hyundai Material Handling 12, 16 & 20ES-X Pallet Stackers
What batteries do the 12, 16 & 20ES-X pallet stackers run off?
The 12ES-X runs off a 180Ah 2VBS lead acid battery, the 16ES-X runs off a 270Ah 3VBS lead acid battery and the20ES-X runs off a 350Ah DIN 3PzS lead acid battery. Li-ion batteries are also available.
What is the load centre of the 12, 16 & 20ES-X pallet stackers?
All machines have a 600mm load centre
What is the load capacity of the 12, 16 & 20ES-X pallet stackers?
The pallet stackers have a lift capacity of 1.2 to 2.0 tonnes.
What is the maximum lift height of the 12, 16 & 20ES-X pallet stackers?
The maximum lift height is 4530mm.
