EO-X Series (2.5t)
1200 mm
115 mm
24 V
Technical details
Product Overview
Designed with operator wellbeing in mind, the 25EO-X features a 4-point structure with floating shock absorption and rubber pads to minimise vibration. The ergonomically curved backrest further reduces fatigue, allowing operators to work longer with greater comfort and productivity. Its electric steering system and ergonomic Rema multi-functional handle make operation both efficient and comfortable.
Reasons to choose the 25EO-X Low-Level Order Pickers
Maximum Productivity, Seamless Efficiency

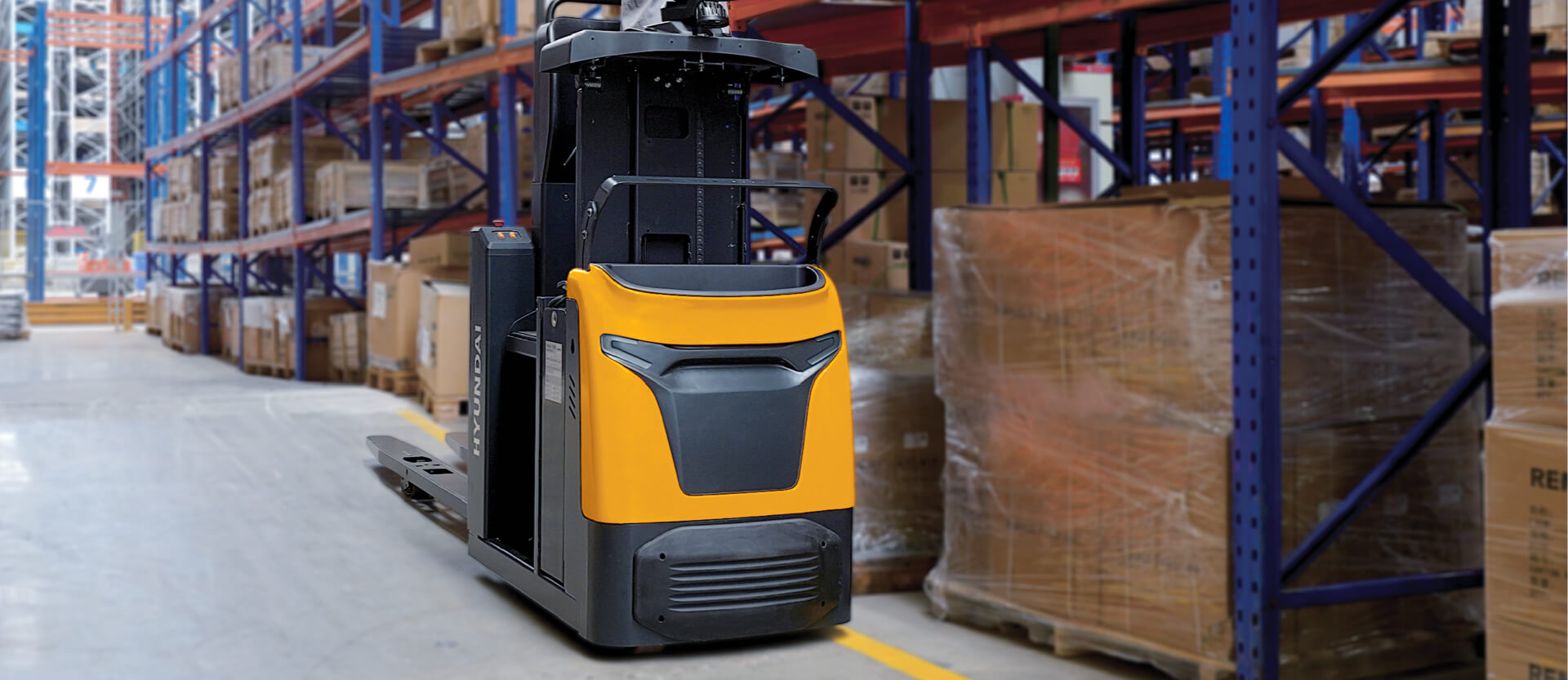

The Hyundai 25EO-X 2.5-tonne Low-Level Order Picker is built to keep warehouse operations moving at maximum speed and efficiency. With powerful performance, smooth handling, and operator-friendly features, it’s designed to boost productivity in fast-paced logistics environments.
- Impressive travel speed reaches 9km/h when loaded and 12km/h when unloaded for faster material handling.
- Powered by a maintenance-free German Schabmüller AC motor and Kordel gearbox for smooth acceleration and deceleration.
- High-performance hydraulic pump makes lifting easier, faster, and more efficient during picking operations.
- Operating platform lowers via foot switch, keeping the operator’s hands free for greater efficiency.
Reliable Battery Power to Keep You Moving
The Hyundai 25EO-X 2.5-tonne Low-Level Order Picker is engineered with powerful battery options to deliver maximum uptime and efficiency in busy warehouse environments. Whether you choose the standard lead-acid or the optional Li-ion battery, this order picker ensures consistent performance and quick battery replacement to keep operations running smoothly.
- 2.6kW drive unit delivers strong and reliable power for demanding picking operations.
- Standard 24V/465Ah lead-acid battery giving proven durability and dependable energy for everyday use.
- Optional 300Ah Li-ion battery for fast charging, zero maintenance, and longer life cycle for higher efficiency.

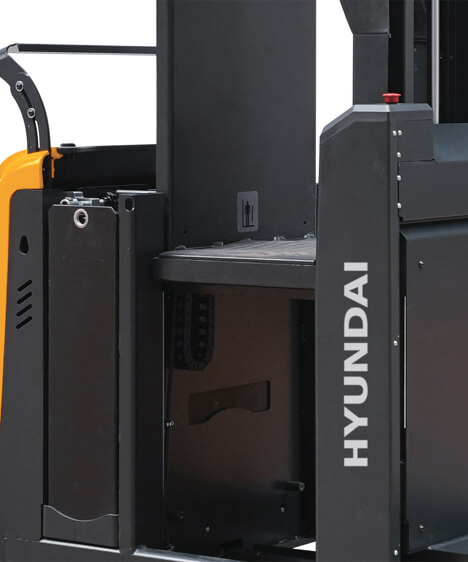

- Sideways battery exchange system with an adjustable handling bracket for quicker, easier battery replacement during multi-shift operations.
Operator-Focused Design Features
The Hyundai 25EO-X 2.5-tonne Low-Level Order Picker is designed with operator convenience in mind, combining ergonomic controls and intelligent features to make every task easier and more efficient. From intuitive handling to smarter storage, it enhances productivity while reducing operator fatigue.

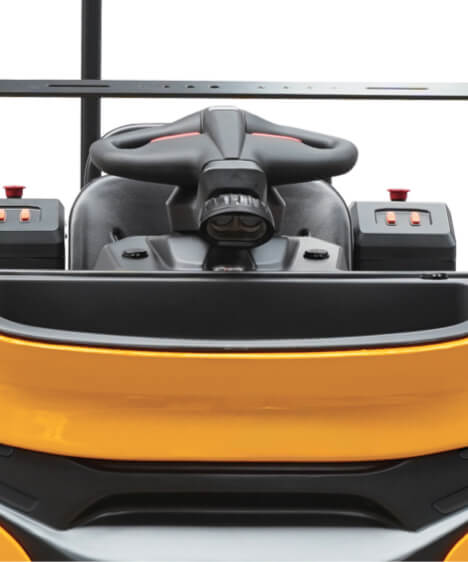

- Ergonomic Rema handle with responsive, easy-to-reach buttons that ensure comfortable and precise control.
- Multi-functional control display shows real-time order picker status, including battery capacity, working time, travel speed, and steering angle.
- Dual coasting buttons located on both sides, allowing operators to move the machine forward or backward and lift forks while walking alongside, reducing unnecessary entry and exit.

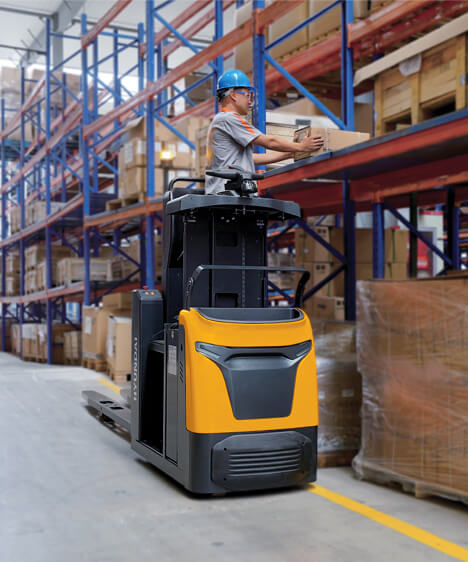

- Liftable operator platform and storage shelf raises up to 850mm for efficient picking, while the storage area improves handling of lightweight cargo.
Designed for Safety and Operator Protection
The Hyundai 25EO-X 2.5-tonne Low-Level Order Picker is built with advanced safety and security features to protect operators and ensure reliable performance in demanding warehouse environments. From enhanced visibility to operator-focused design, it provides peace of mind while boosting productivity.
- Automatic front blue safety light activates when driving forward and turns with the steering handle to improve visibility and reduce risks.
- Operator protection features such as safety flanks, non-slip surfaces, and a supportive backrest handle provide extra security during operation and when entering or exiting the order picker.
- Reinforced welded fork is designed for durability, with an adjustable trolley for easier height adjustment and simplified maintenance.

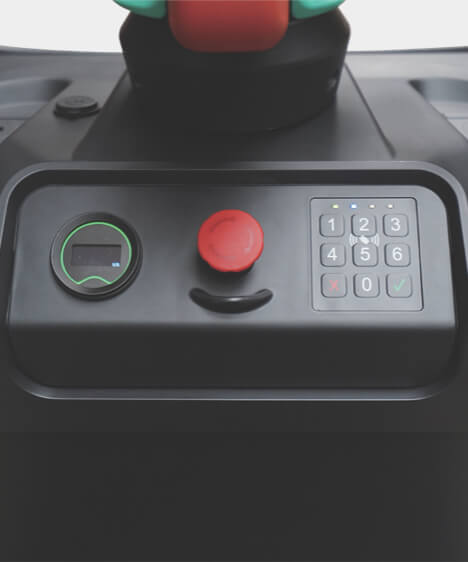

- PIN code and RFID access prevents unauthorised use by allowing multiple start passwords or card-based operation.
FAQs about the Hyundai Material Handling 25 EO-X Low-Level Order Pickers
What batteries do the 25EO-X Low Level Order Pickers run off?
The EO-X range runs off pallet trucks run off a 24V lead-acid battery with an optional 24V Li-ion also available.
What is the load centre of the 25EO-X Low Level Order Pickers?
The 25EO-X has a 1200mm load centre
What is the load capacity of the 25EO-X Low Level Order Pickers?
The 25EO-X has a lift capacity of 2.5 tonnes.
What is the turning radius of the 25EO-X Low Level Order Pickers?
The 25EO-X has a turning radius of 3005mm
