6000 / 7000 / 8000 / 9000 kg
600 - 900 mm
3025-3040 mm
3380 - 3620 mm
Technical details
Product Overview

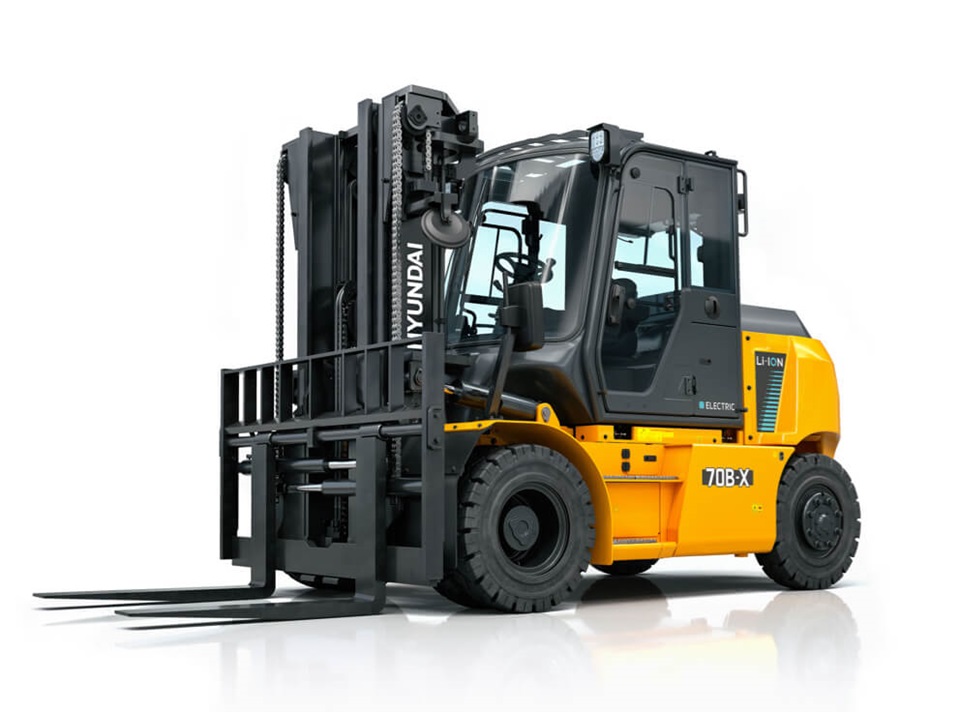

Designed to match – and even replace – traditional heavy-duty diesel forklifts, the B-X Series provides the strength, reliability, and efficiency needed for demanding industries. Whether working indoors or outdoors in extreme conditions, operators benefit from reduced maintenance, fast charging, and the ability to complete a full day’s shift on a single charge. With minimal noise, low vibration, and exceptional durability, Hyundai’s next generation electric forklifts set a new benchmark for sustainable, high-performance lifting solutions.
Reasons to choose the 6, 7, 8 and 9 tonne B-X Series
ENERGY & PERFORMANCE
The new Hyundai B-X 6 to 9 tonne electric forklift range is engineered for heavy-duty performance. With its next generation high-voltage system, it delivers outstanding power, efficiency, and sustainability — the perfect choice for demanding warehouse, logistics, and industrial operations.
- Battery Thermal Management System – Advanced water-cooling keeps the battery, inverters, and motors at optimal temperature, ensuring consistent performance and longer component life.
- Energy Efficient Operation – Lower current reduces energy losses (I²R), improving overall efficiency and reducing running costs.
- Rapid Charging Capability – Compatible with fast charging, reducing downtime and keeping operations moving at full speed.
- More Power for Demanding Jobs – High-voltage batteries deliver extra peak power, making light work of intensive lifting tasks in logistics and manufacturing.
- Reduced Heat, Extended Lifespan– Less heat in cables, connectors, and controllers protects components and supports long-term reliability.
SAFETY WITHOUT COMPROMISE

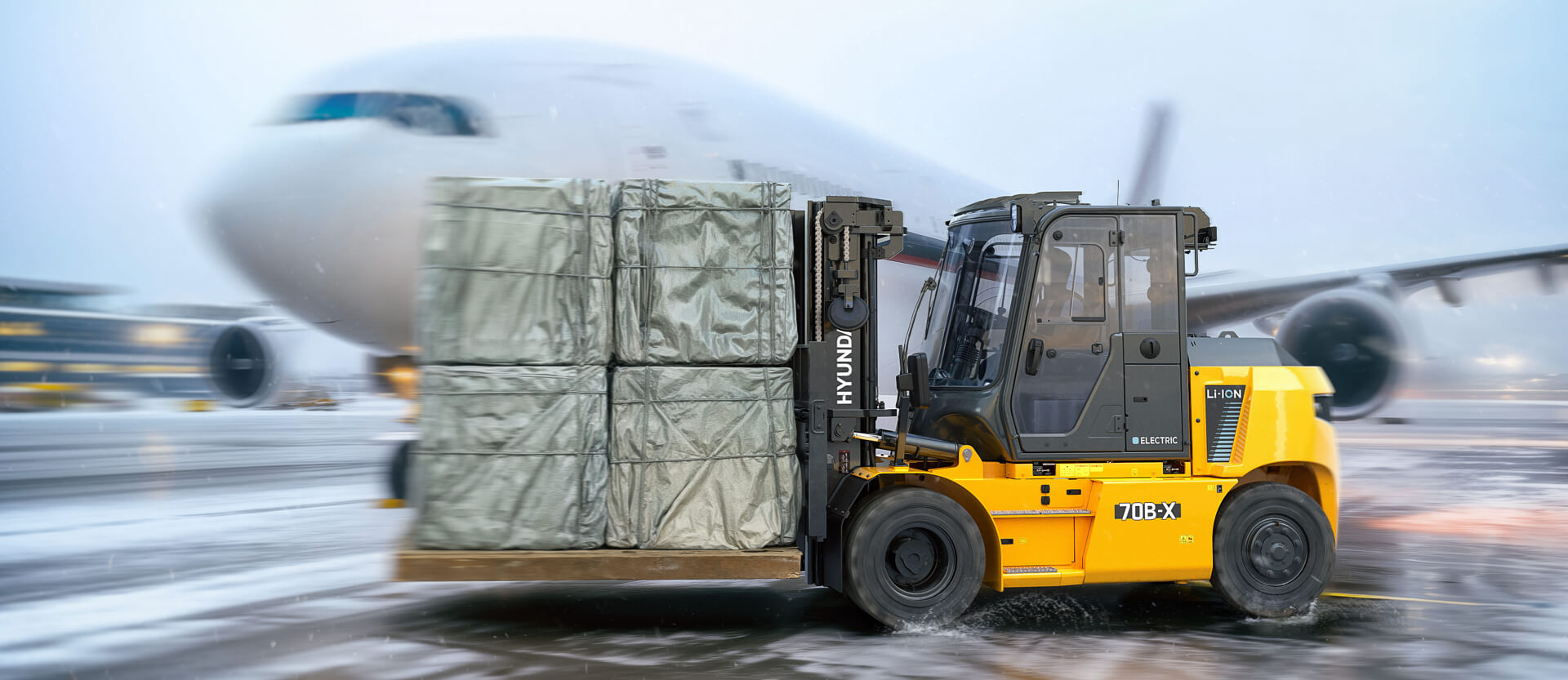

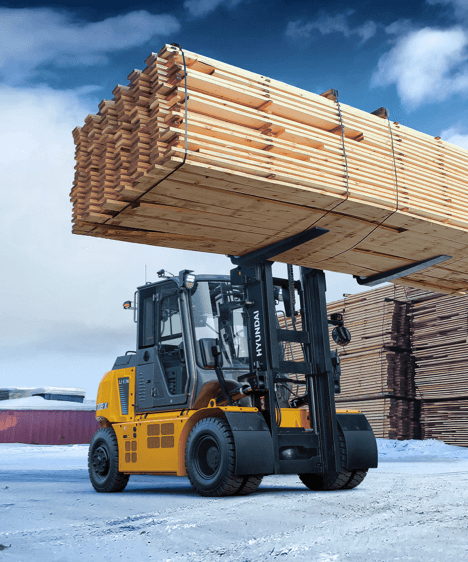

Safety is non-negotiable. The Hyundai B-X Series is equipped with advanced technologies that create a secure and dependable working environment for both operators and pedestrians. Designed for versatility, it’s the ideal choice for internal settings such as warehouses, processing and manufacturing plants, as well as external operations including ports, airports, lumber yards, and concrete works.
- Pedestrian Detection (Optional) – Onboard camera highlights nearby pedestrians and sounds a buzzer to help prevent collisions.
- Load Sensing (Optional) – Displays real-time load weight and alerts when capacity is exceeded to prevent overloading.
- Operator Presence System – Disables driving and mast functions if the operator leaves the seat, avoiding unintended movement.

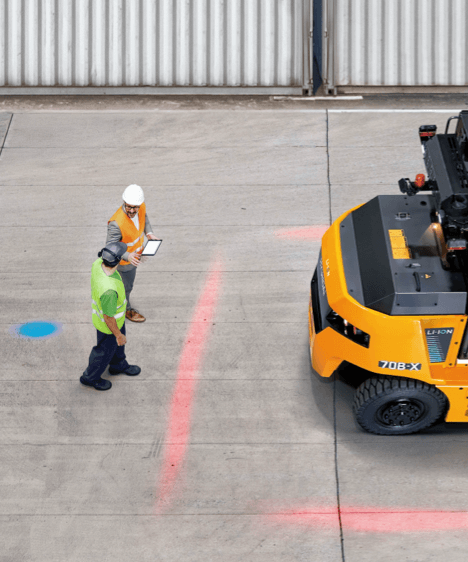

- Blue Spot & Red Zone Lighting (Optional) – Projects clear visual warnings to alert pedestrians and define safe working zones.
- Charging Port Protection – A durable cover shields the charging port from impact, dust, and moisture for safe long-term use.
CONVENIENCE & COMFORT
The new Hyundai B-X 6 to 9 tonne electric forklifts are built to be quieter, smoother, and smarter — delivering exceptional operator comfort and higher productivity. Ideal for warehouses, manufacturing, and logistics, they combine advanced technology with outstanding handling.
- Anti Roll-Back – Maintains secure control on ramps and slopes, preventing rollback for safer stopping and smooth restarts.
- Mast Damping Option – Minimises mast vibrations to improve load stability and operator comfort, especially on uneven ground.
- Anti Roll-Back – Maintains control on ramps and slopes, preventing rollback for safer stopping and restarts.

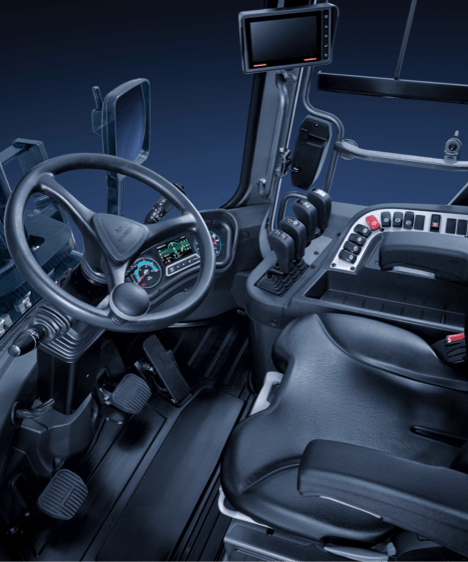

- Smart LCD Display – A clear, high-visibility cluster shows real-time data including battery status, load weight, driving modes, and alerts for safer, more efficient operation.
- Low Noise, Low Vibration – The electric powertrain and noise-reducing design cut cabin noise by up to 14 dB, reducing fatigue and enhancing workplace safety.
Low on cost of ownership
Smart design in the Hyundai B-X 6 to 9 tonne range ensures easier servicing, lower maintenance costs, and long-term reliability. With less downtime and reduced running expenses, your business stays productive.
- Lower Total Cost of Ownership – Save up to 70% annually on fuel and maintenance versus diesel, with potential savings of €73,000 over 10 years.
- Hi MATE Fleet Management – Visualised data helps improve safety, boost productivity, and cut operating costs across your fleet.
- Peace of Mind Warranty – 3-year / 4,000-hour truck warranty, 5-year / 10,000-hour battery warranty, plus 85% battery capacity guaranteed after 5 years.
- High-Voltage Cut-Off Switch – The MSD plug safely isolates the high-voltage system during servicing.
FAQs about the 60B-X, 70B-X, 80B-X, 90B-X and 80B-XL Electric Forklifts
What batteries do the 60B-X, 70B-X, 80B-X, 90B-X and 80B-XL Electric Forklifts run off?
The high voltage range runs of a 348.7 v/Ah.
Can the 60B-X, 70B-X, 80B-X, 90B-X and 80B-XL Electric Forklifts work outside
Yes. The machines are CE certified, with IP67-rated components ensuring safe, reliable operation, even in rain and extreme cold conditions.
What is the load centre of the 60B-X, 70B-X, 80B-X, 90B-X and 80B-XL Electric Forklifts ?
The 60B-X, 70B-X, 80B-X & 90B-X have a load centre of 600mm whilst the 80B-XL has a load centre of 900mm
What is the load capacity of the 60B-X, 70B-X, 80B-X, 90B-X and 80B-XL Electric Forklifts?
The 60B-X, 70B-X, 80B-X, 90B-X and 80B-XL have load capacities ranging from 6 tonnes to 9 tonnes
What is the drive motor rating of the 60B-X, 70B-X, 80B-X, 90B-X and 80B-XL Electric Forklifts?
The 60B-X, 70B-X, 80B-X, 90B-X and 80B-XL runs on a 75kW drive motor
