1600-2000 kg
4500 - 13500 mm
600 mm
1650-1840 mm
Technical details
Product Overview

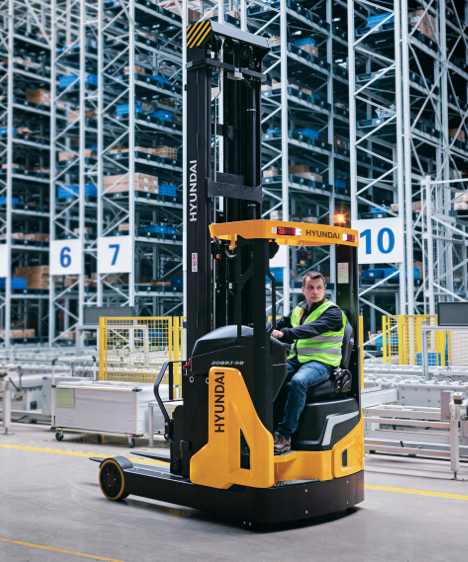

Designed to elevate your material handling efficiency, the Hyundai 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH reach trucks offer a powerful combination of performance, precision, and durability. These reach trucks are equipped with a powerful battery, a compact turning radius, and an ergonomic design to enhance productivity in any warehouse environment.
Reasons to choose the 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH Reach Trucks
Maximise Productivity with Advanced Performance
The Hyundai 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH reach trucks are built to optimise productivity in demanding warehouse operations. With precision control, superior visibility, and innovative technology, these trucks ensure smooth handling, minimal downtime, and enhanced workflow efficiency.
- Reduced turning radius allows for effortless manoeuvrability in tight warehouse aisles
- Electro-Hydraulic Proportional Control System provides precise and responsive load handling for greater accuracy.
- Advanced hydraulic functions ensure smooth and controlled deceleration for more efficient operation.

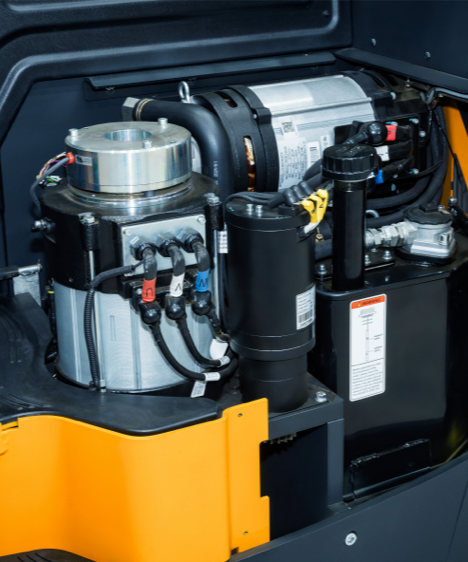

- Maintenance-free AC motors deliver powerful, reliable performance with minimal servicing required.
- Extra high lift capability on the 20BRJ-9BH model offers lift heights up to 13,500 mm for extended warehouse storage solutions.

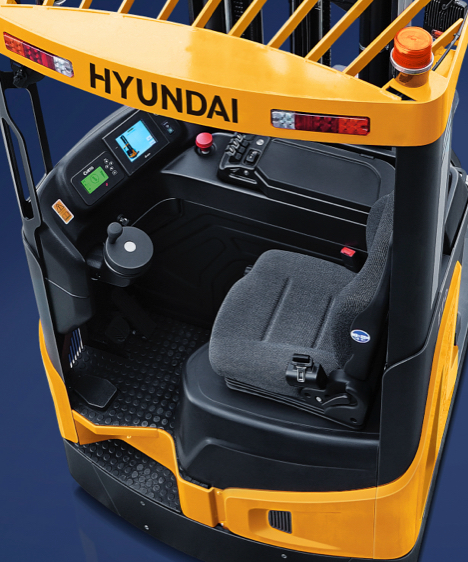

Designed for Operator Comfort and Ease of Use
16BRJ-9B, 20BRJ-9B and 20BRJ-9BH reach trucks are engineered with the operator in mind, ensuring a comfortable and intuitive driving experience. With ergonomic features, responsive controls, and a spacious design, these trucks help reduce fatigue and enhance overall efficiency.
- Multi-Functional Display provides real-time information on performance, battery status, and diagnostics for effortless monitoring.
- Selectable 180°/360° steering modes allow for precise and adaptable control in various working conditions.
- Spacious and comfortable cab is equipped with a shock-absorbing, adjustable seat to reduce strain during long shifts.
- Adjustable steering wheel and console ensures optimal comfort and control for different operators.
- A well-designed step and open layout make getting in and out of the truck simple and convenient.
Enhanced Safety for Confident Operation
The Hyundai 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH reach trucks are designed with advanced safety features to ensure secure and reliable performance in demanding warehouse environments.
- Speed limit control during lifting automatically reduces speed while lifting loads to enhance stability and prevent accidents.
- Safer turning with curve control which adjusts speed based on turning angle for smoother, more controlled manoeuvring.
- Height limit safety feature prevents lifting beyond set height limits to avoid collisions with overhead obstacles.
- Excellent visibility thanks to optimised mast and overhead guard design provide a clear view for safer operation.
- Stable and ergonomic design ensures comfort and control, reducing fatigue and the risk of errors during long shifts.
Effortless Maintenance for Maximum Uptime
The Hyundai 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH reach trucks are designed for easy servicing, minimising downtime and keeping operations running smoothly. With durable, low-maintenance components, and accessible service points, these trucks reduce the time and effort needed for upkeep.
- Maintenance-free AC motors offer Reliable, long-lasting performance with minimal servicing required.
- A durable and robust chassis design enhances longevity and reduces wear and tear.
- Conveniently located service points simplify routine maintenance and inspections.
- Optimised component layout makes troubleshooting and repairs quicker and more efficient.
FAQs about the 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH Reach Trucks
What is the load capacity of the 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH?
The new 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH have load capacities of 1600-2000kg.
What are the load centre distances of the 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH?
All models offer a 600mm load centre distance.

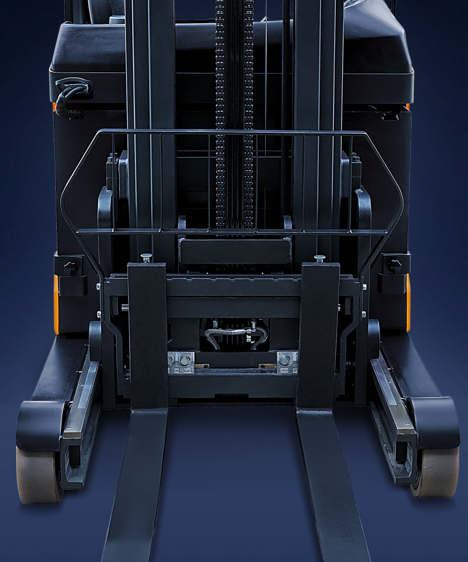

What are the mast options for the 16BRJ-9B, 20BRJ-9B and 20BRJ-9BH
The 16/20BRJ-9B offer mast types up to 9500mm whilst the 20BRJ-9BH offers mast types up to 13500mm.
What battery options are available for the 16/20BRJ-9B?
A lead acid battery comes as standard with a Li-ion available as an option.
