4-wheeled Electric Forklifts
9U-Series Electric Forklifts (2-4t)
Your satisfaction is our priority. Proven AC technology!

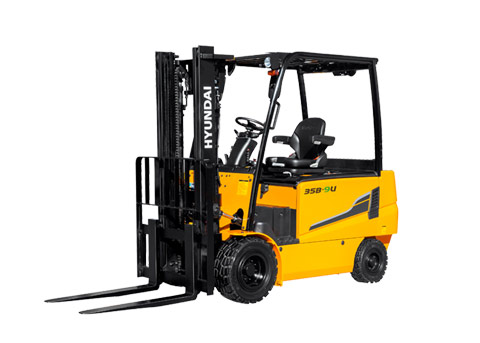

Introducing the upgraded Hyundai 9U-Series electric 4-wheel forklift truck. The 9U-Series features a fully separated electro-hydraulic steering unit. This brings added value to the next level by dramatically improving energy consumption and enhancing steering safety and stability.
2500 / 3000 / 3200 / 3500 kg
500 mm
3000-7900 mm
1940 / 2150 / 2165 / 2205 mm
Technical details
Download
Brochures
DownloadRugged performance
The Hyundai 2.5 - 3.5 ton 9U-Series range of 4-wheel electric forklift trucks has been designed to deliver simple, powerful performance in a variety of operations. These electric forklifts feature an ergonomically designed cabin (OPT) with all functions and levers within easy reach, reducing operator fatigue and increasing productivity.
The 4-wheel counterbalanced forklift trucks offer a combination of high-power, agility, and comfort. The driver benefits from their excellent ergonomics and unmatched performance! The Hyundai 9U-Serie is suitable for applications in logistics, food and drink, manufacturing, timber, and automotive industries.
Dual drive motor system
The dual drive motor system consists of two separately controlled drive motors. Unlike the single drive motor system, it prevents the wheels from spinning even when the grip force of the left and right wheels is different. in addition, it enables strong drive performance even on a dirty road.

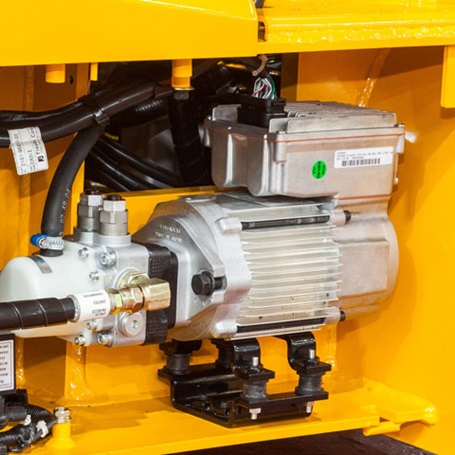

Electro Hydraulic Power Steering
Equipped with both the energy efficiency of the electric power steering system and the stability of the hydraulic power steering system, the EHPS system is composed of a torque sensor, controller, motor, hydraulic pump, and steering cylinder, and operators efficiently with little energy required.

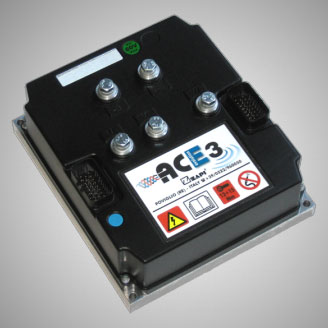

Dual MiCOM ZAPI controller
With a dual MiCOM on the inside, ZAPI's new AC controller safely controls the forklift by processing signals and faults via a two-way method and is protected from moisture and other pollutants as IP65. also, the drive controller capacity is optimized and left and right split structure is adopted to reduce energy consumption.
Robust and economical AC motor
The enclosed drive and pump motor with AC technology combine power, extended maintenance intervals and excellent durability. The prestolite AC motors offer improved
efficiency and reduction maintenance cost. It is certified IP43.
Ergonomically Designed Workspace
Ergonomic design focusing on operator convenience and maneuverability further enhances work efficiency. Easy to operate levers and pedals, adjustable handle, suspension seat and a large multi-functional cluster dashboard allow comfortable and efficient driving.
LCD Color Monitor
The LCD color monitor with 4.3 inch graphic smart display allows the operator to identify speed, travel direction and operating hours and control the machine efficiently. The load indicator displays the load weight in the monitor. The operator can select three performance modes to meet all working conditions. Multilanguage (maximum 11) is available.
Curve Control
Curve Control limits travel speed based on turning radius, reducing speed for a smooth, precise turning operation for the driver.
Operator Presence Sensing System (OPSS)
When an operator is not in his seat, the hydraulic lift and tilt controls will be locked out as well as the travel.
Anti Roll Back System
Anti Roll-back system offers protection against the machine rolling back on a ramp in combination with exceptional ramp starting capabilities.
