4-wheeled Electric Forklifts

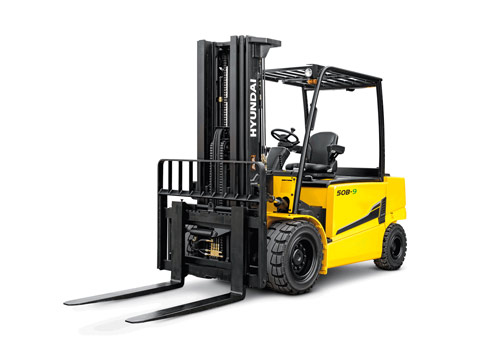

9-Series Electric Forklifts (4-5t)

The powerful, high capacity Hyundai 9-series of 4-wheel electric counterbalance forklift trucks deliver excellent maneuverability together with a low cost of operation. The customizable seat ensures optimal ergonomics. The 80V powered truck ensures optimal performance at minimal power consumption.

4000 / 4500 / 4990 kg

500 mm

2900-6000 mm

2670 / 2670 / 2705 mm

Technical details


Rugged performance

Reliability, safety, and maximum productivity are what the Hyundai 4.0 - 5.0 tonne range of electric forklifts are all about. The latest technology and innovation using AC power means the ACT system (Active Control Technology) can maximize the efficiency of the motors to provide industry-leading performance and drive characteristics. The forklift trucks have capacities from 4.0 - 5.0 tonne and boast an 80V AC power system, guaranteeing reliable performance in most applications.

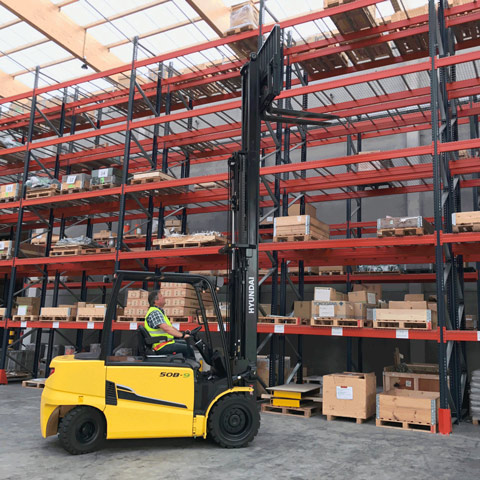

Hyundai 50b-9 forklift operator picking goods in the warehouse
dual drive system 9u series electric hyundai forklift close-up

Dual drive motor system

The dual drive motor system consists of two separately controlled drive motors. Unlike the single drive motor system, it prevents the wheels from spinning even when the grip force of the left and right wheels is different. in addition, it enables strong drive performance even on a dirty road.

hyundai lcd display system

LCD Color Monitor

The LCD color monitor with 4.3 inch graphic smart display allows the operator to identify speed, travel direction and operating hours and control the machine efficiently. The load indicator displays the load weight in the monitor. The operator can select three performance modes to meet all working conditions. Multilanguage (maximum 11) is available.

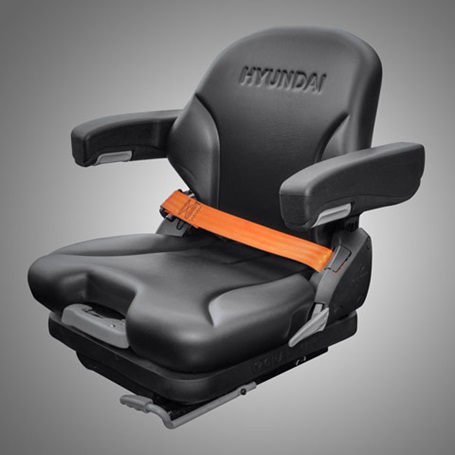

Grammer forklift seat

Grammer Seat

An adjustable ergonomic seat provides unmatched comfort. The adjustable armrest further reduces operator fatigue.

Ergonomic workspace

Ergonomically Designed Workspace

Ergonomic design focusing on operator convenience and maneuverability further enhances work efficiency. Easy to operate levers and pedals, adjustable handle, suspension seat and a large multi-functional cluster dashboard allow comfortable and efficient driving.

Anti roll-back system

Anti Roll Back System

Anti Roll-back system offers protection against the machine rolling back on a ramp in combination with exceptional ramp starting capabilities.

operator presence sensing system

Operator Presence Sensing System (OPSS)

When an operator is not in his seat, the hydraulic lift and tilt controls will be locked out as well as the travel.
